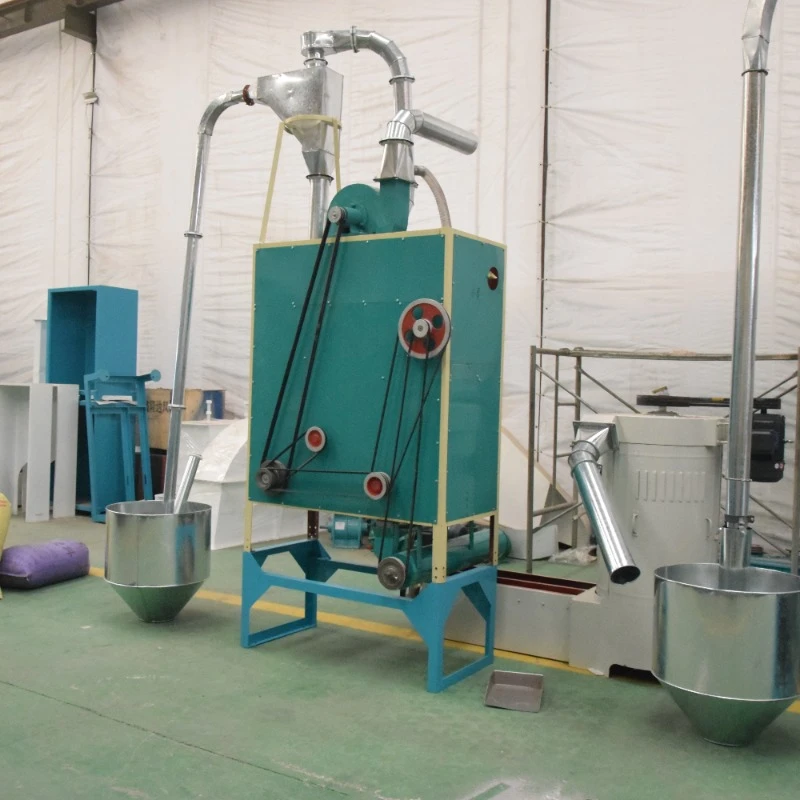

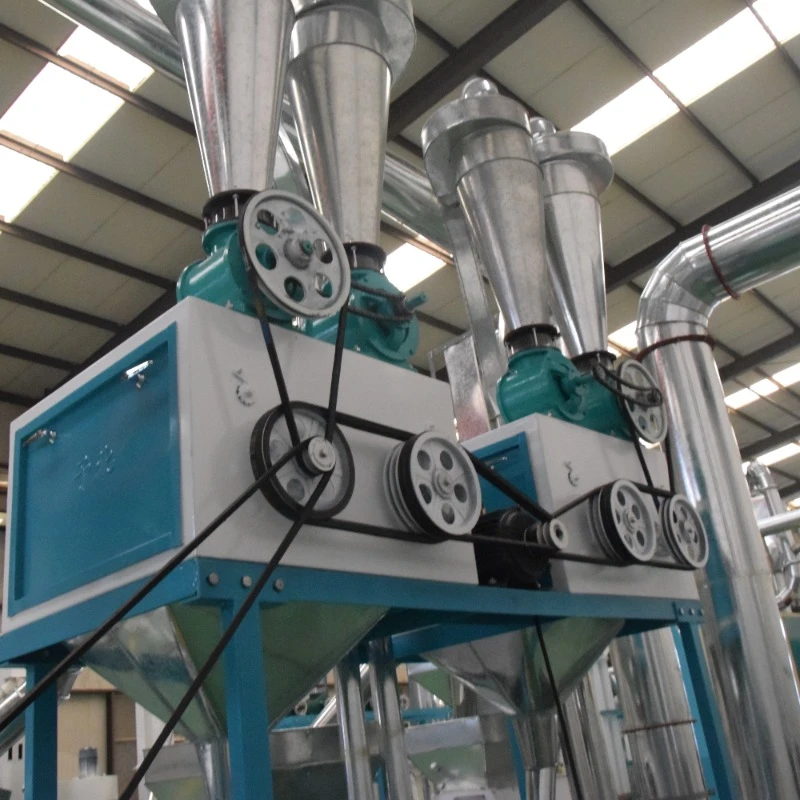

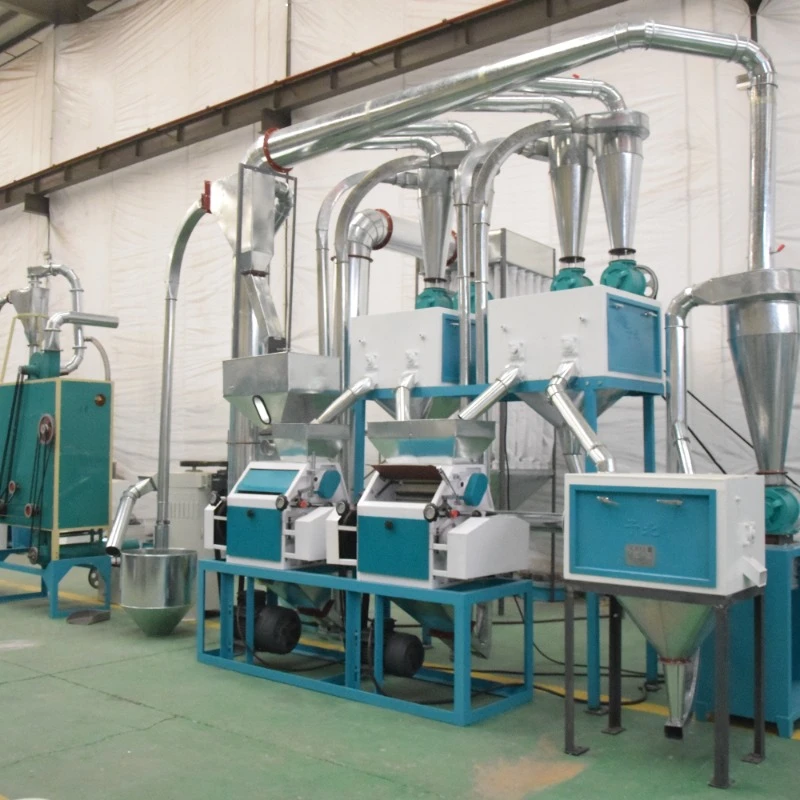

10TPD Wheat Flour Mill Machine

This complete line has a capacity of 10 tons wheat per day. includes cleaning section, wheat washer, two roller mills, sifter unit, full-set pneumatic ducting network and electric control cabinet

Inquiry Now Next Product

Raw Material Adaptation

For wheat: optimum moisture 15~16.5%. Soft wheat:14.5~15.5%; hard wheat:15.5~16.5%.

Total impurities: ≤1%. Side-by-side stones, mud lumps and metal debris must be removed. (Destoner and magnetic separator are recommended as supporting equipment). Long straw, hemp rope, plastic scraps and large straw residues are strictly prohibited from feeding, as they are prone to tangling the pneumatic conveying system and rotary sieve.

Core Production Parameters

Daily processing capacity	10 tons of Wheat per 24 hours
Total installed power	32.8 kW
Flour extraction rate	65-80%
Daily flour output	6.8-8 t/d
Working mode	Fully automatic continuous operation

Finished Product Quality Standard

Final flour quality depends on raw grain quality, tempering moisture, sieve mesh and flour extraction rate. Higher extraction rate leads to higher ash content and more bran specks. Lower extraction rate is required for high-purity low-ash flour.

Flour fineness:

90-120 mesh, Moisture: ≤14.5%, good storage performance, not easy to mildew

Ash content (dry basis):

≤1.10 %

Processing Configuration

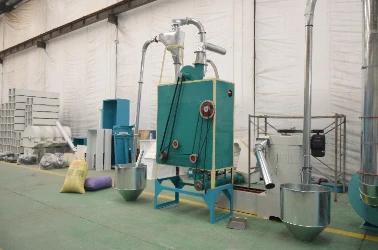

Cleaning Section

Raw wheat firstly goes into cleaning equipment, where straw, dust, stones, metal fragments and other impurities are removed by sifting, air separation and magnetic separation.

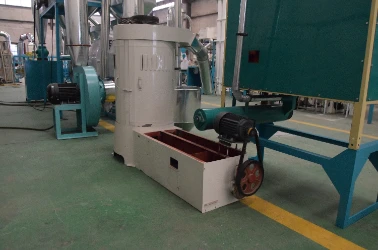

Wheat Washing Section

Clean wheat passes to the wheat washer to wash off surface dirt and contaminants with preliminary moisture adjustment. Then wheat enters tempering system for proper conditioning. Tempering toughens bran layer while keeping endosperm brittle, which guarantees good skin-core separation, flour quality and flour yield.

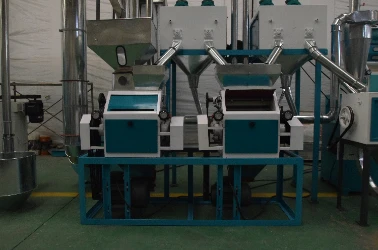

Flour Milling

Conditioned wheat is conveyed to milling section. Two roller mills work together for breaking, scraping and separate skin-core grinding.

Flour Sifting Section

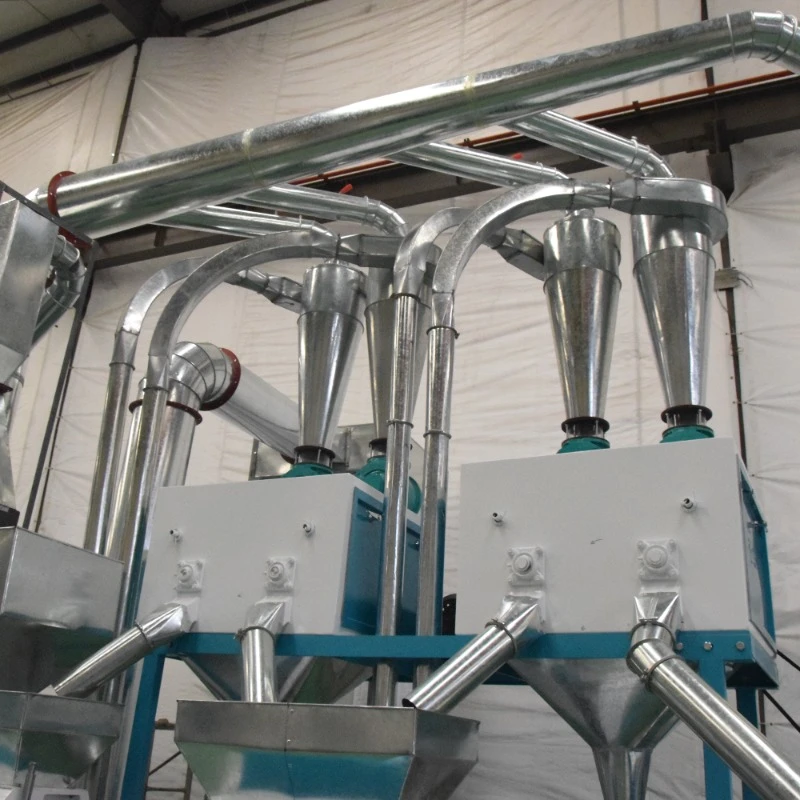

Ground stock flows into sifter unit for classification to separate finished flour, middlings and bran. The complete negative-pressure pneumatic network handles material conveying, recirculation and dust removal with closed transport, low dust and automatic re-grinding.

Flow Chart

Cleaning

Wheat Washing

Wheat Tempering

Flour Milling

Flour Sifting

Finsihed Flour Collecting

Technical Parameters

Model	YBWF10
Capacity	10 tons per day (24 hours)
Power	32.8 kW
Flour fineness	90-120 mesh
Flour outrate	65-80%
Package	10-25 kg
Delivery	One 20GP container needed
Installation Size	6m × 4m × 3.5m

FAQ

Q1: What is the processing capacity of this Wheat flour mill line?

Raw material input: 10 tons of wheat per day.as working 24 hours

Q2: What moisture content is required for raw wheat?

Soft wheat:14.5~15.5%; hard wheat:15.5~16.5%.

Q3: Can we adjust the fineness of final Wheat flour?

Yes. Different replaceable screen meshes can be installed in the sifting machine to change flour fineness, multi-grade products are available.

Q4: What is flour extraction rate and ash content?

For good-quality wheat, total flour extraction rate 65-80%. Dry-base ash content ≤0.85%. Higher flour yield will bring higher ash and more bran specks.

Q5: How many operators are needed?

1-2 workers for feeding, monitoring and finished-product collection. No large labour force required.

Q6: Is installation difficult? Will you supply drawings?

Layout drawing, foundation drawing and pneumatic layout drawing are provided. Customer prepares workshop, foundation, water and power. Remote installation guidance is available. On-site installation service is optional at extra cost.
